Open Gate Video Explained: When 3:2 Is Worth It

Open Gate is a capture shape, not a codec or color profile. A camera records more of the sensor above and below the normal widescreen frame, giving the editor room to choose the final aspect ratio later. Panasonic's Open Gate guide uses a 5952 x 3968 LUMIX file as an example: the 3:2 master can produce both a wide 16:9 crop and a 9:16 vertical crop with substantially more vertical detail than a standard 3840 x 2160 recording.

What does Open Gate actually change?

Setting	What changes	What does not automatically change
Open Gate on	Taller sensor readout and a taller recorded frame	Dynamic range, color science, and lens field of view
16:9 recording	Camera commits to a wide crop during capture	The lens and camera position
9:16 export from Open Gate	Editor selects a narrow vertical section later	The action outside that crop is discarded
Higher-resolution Open Gate	More pixels are available for reframing	Final quality still depends on focus, exposure, bitrate, and compression

The phrase sometimes gets used loosely. Confirm the recorded resolution and aspect ratio in the manual. Some cameras offer a true full-width 3:2 readout. Others use a 4:3 mode, crop the width, or reserve Open Gate for RAW. The menu label alone does not tell you the exact sensor area or frame-rate ceiling.

When is Open Gate worth using?

One take needs several deliverables

This is the clearest use. Record an interview, product demonstration, workout, or travel sequence once, then make a 16:9 YouTube version and a 9:16 social version. Keep the main subject near the center and leave more room around gestures, props, and entrances than you would for a finished widescreen frame.

The framing may change in the edit

A taller master gives an editor room to straighten a horizon, stabilize a handheld shot, or make small digital reframes without immediately cutting into the subject. It is useful insurance, but not unlimited insurance. A vertical crop still throws away most of the horizontal frame.

Anamorphic footage needs more sensor height

Some anamorphic workflows benefit from a taller capture area before the footage is desqueezed. Check the camera's supported resolution, squeeze preview, and final aspect ratio before assuming every Open Gate mode is suitable.

When should you skip it?

Use a normal 16:9 mode when the final delivery is known, the composition is deliberate, and the Open Gate setting forces a compromise you do not need. Those compromises vary by camera.

Canon's EOS R6 Mark III manual, for example, lists 3:2 Open Gate at up to 29.97 fps, with RAW at 6960 x 4640 or 10-bit HEVC at 6912 x 4608. It also disables Open Gate with movie cropping, HDMI RAW output, UVC/UAC streaming, and RF-S or EF-S lenses. That is one camera's implementation, not a universal rule, but it shows why the mode table matters.

Skip Open Gate when you need:

• A frame rate the Open Gate mode cannot provide
• A specific external RAW or streaming workflow that the camera disables
• Smaller files and quicker edits for a single 16:9 delivery
• The least rolling-shutter risk, if a faster cropped readout performs better on your camera
• A wide composition with important action near both side edges that will never survive a vertical crop

How do you frame for both horizontal and vertical video?

Turn on the camera's aspect markers if it has them. Canon explicitly supports aspect markers as an Open Gate framing guide. Keep the important face, hands, or product inside the vertical marker while still arranging a useful horizontal scene outside it.

Use this order:

1. Choose the final aspect ratios. A 16:9 and 9:16 pair needs different safe space than a 2.39:1 film and a square teaser.
2. Enable matching markers. Treat the narrowest crop as the protected action area.
3. Compose the wider frame. The side information should add context, not hold critical action.
4. Record a short test. Import it, make both crops, and inspect resolution, stabilization, and rolling shutter.
5. Lock the edit workflow. Decide whether the project interprets the file as 3:2, then crop in the timeline rather than stretching it.

Do not place every subject dead center by habit. Center the action that must survive all crops, then use depth, movement, foreground, and background to give the horizontal version a deliberate composition.

Is Open Gate better than 4K?

They describe different things. Open Gate describes the sensor area or aspect ratio. 4K describes approximate output dimensions. A camera can record 6K Open Gate, 4K 16:9, or another combination. Higher capture resolution gives a vertical crop more pixels, but a clean 4K mode may still be the better choice when it has a higher frame rate, lower data rate, faster readout, or easier editing codec.

The video codecs, formats, and Log guide explains how resolution, H.264, H.265, ProRes, RAW, bit depth, and Log fit together. The Video Format Decoder can translate a camera menu string before a shoot.

A practical Open Gate camera

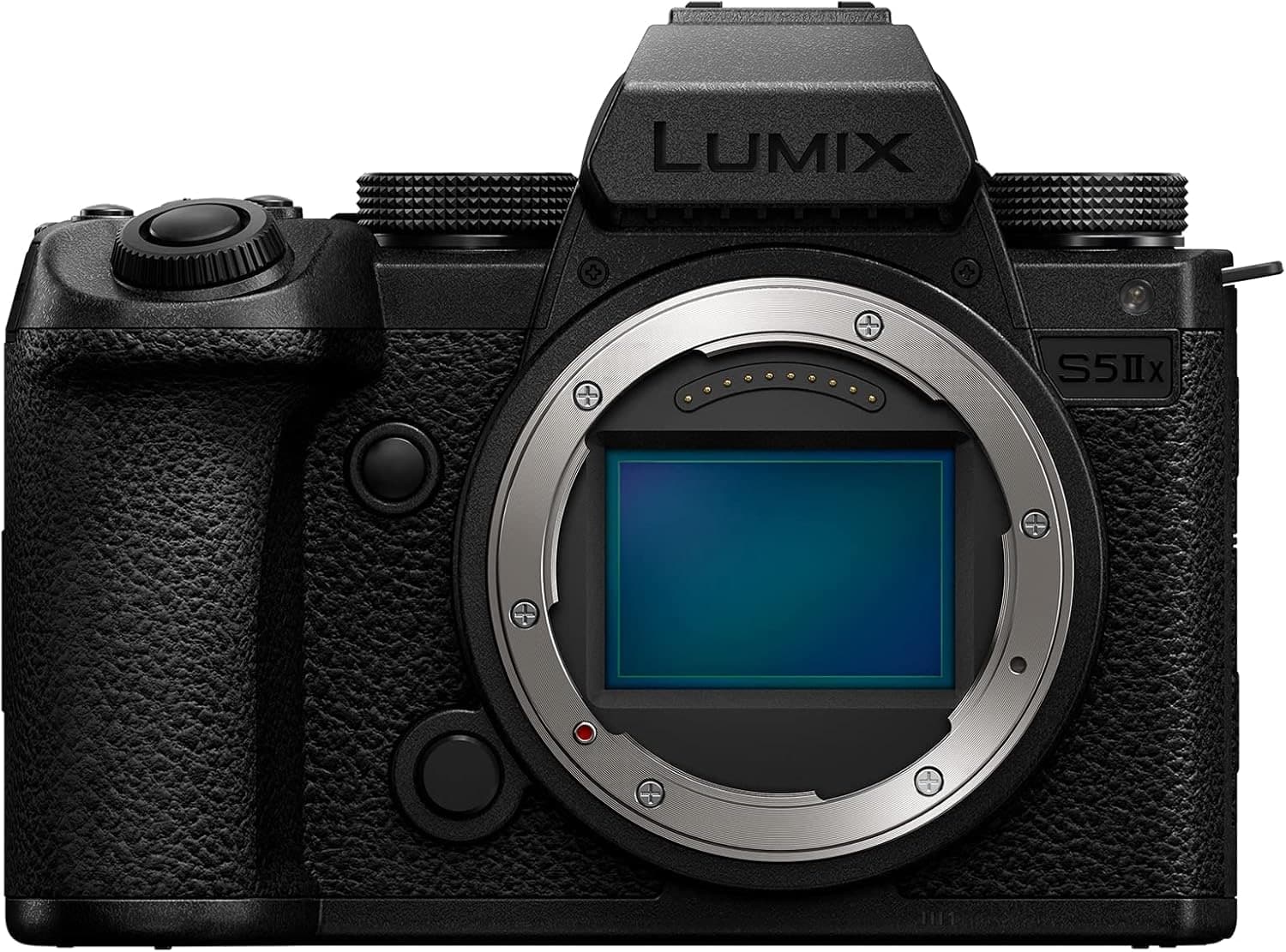

The LUMIX S5IIX records 5952 x 3968 6K in 3:2, according to Panasonic's S-series feature comparison. It is a sensible hybrid option when 10-bit Open Gate, active cooling, and video-oriented connections matter. Do not buy it for the words "Open Gate" alone. Check the frame rates, crop, autofocus, storage, and lens system against the work you actually shoot.

Primary sources

• Panasonic: what Open Gate video is and how a 3:2 master supports vertical crops
• Canon EOS R6 Mark III: Open Gate resolutions, frame rates, markers, and restrictions
• Panasonic: LUMIX S-series recording-mode comparison

Does Open Gate use the whole sensor?

It uses a taller sensor area than normal 16:9 video, but the exact readout varies by camera. Check the recorded resolution and sensor-area diagram in the manual instead of assuming every Open Gate mode reads every pixel.

Can I make vertical video from Open Gate footage?

Yes. A 3:2 or 4:3 master has more vertical image area than a 16:9 master, so a 9:16 crop can retain more detail. Keep the important action inside vertical aspect markers while shooting.

Does Open Gate improve image quality?

Not by itself. It gives you more framing options and may record more pixels. Color, dynamic range, noise, rolling shutter, and compression still depend on the camera and recording mode.

Why is Open Gate limited to 30 fps on my camera?

A taller, higher-resolution sensor readout moves more data. Camera makers may limit frame rate or formats to keep heat, processing, and card bandwidth within the camera's design. The limit is model-specific.
