Why Are My Photos Soft at f/16 or f/22? Diffraction

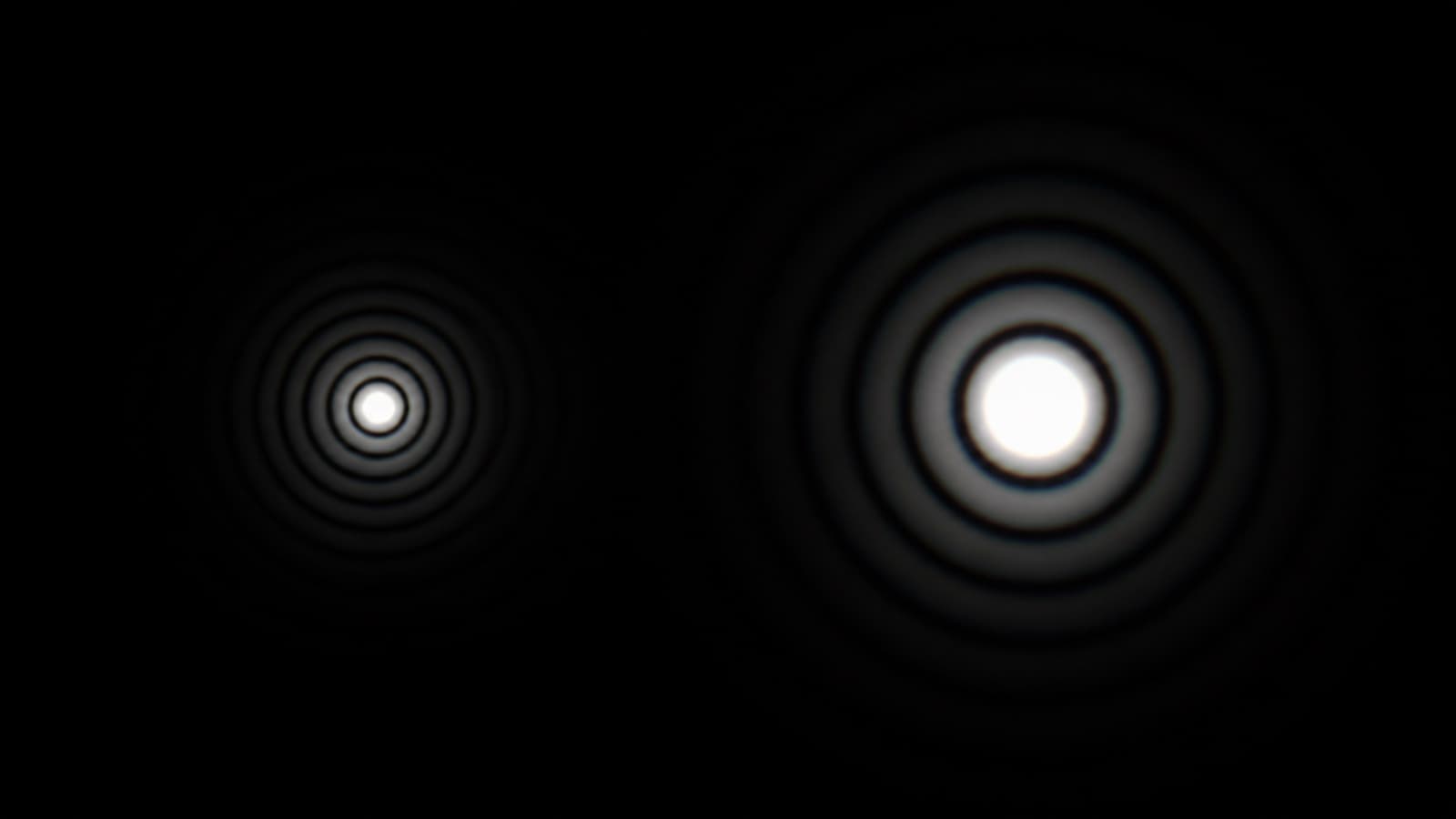

Closing the aperture increases depth of field, but it does not keep adding fine detail forever. As the opening becomes very small, light spreads around the aperture edges. One point in the scene reaches the sensor as an Airy pattern rather than a perfect point. A smaller aperture makes that pattern wider, so neighboring fine details begin to overlap. That diffraction softens detail across the image.

What diffraction looks like

What you see	More likely cause
Fine detail is uniformly softer across the frame	Diffraction
One distance is sharp and another is not	Depth of field or focus placement
Blur follows one direction	Camera shake or subject motion
Center is sharp but corners are weak	Lens field performance, alignment, or focus curvature
JPEG looks waxy while raw is detailed	Noise reduction or sharpening settings

Diffraction does not usually make a frame suddenly unusable. It gradually lowers fine contrast. The effect becomes easier to see with high-resolution sensors, close inspection, large prints, and subjects with dense texture.

Run a controlled aperture test

1. Choose a still, detailed subject

Use a tripod and photograph brick, foliage, a printed resolution target, or a landscape with detail from center to edge. Turn stabilization off if the camera or lens manual recommends that for tripod use. Use a timer or remote release.

2. Keep the focus point fixed

Focus once, then switch to manual focus so the camera does not choose a slightly different plane for each frame. Keep focal length and camera position unchanged.

3. Make an aperture sequence

Photograph the scene at f/5.6, f/8, f/11, f/16, and f/22 when available. Adjust shutter speed to keep exposure equal and keep ISO low. If wind or subject movement changes between frames, repeat the test indoors.

4. Compare the same output size

First compare the complete frames at the size you actually deliver. Then inspect equal-size center and corner crops. A frame that is a little softer at 100 percent may still be entirely adequate for a web image or modest print.

Sony's aperture guidance notes that image quality can deteriorate from diffraction at small apertures. Nikon likewise explains that stopping down too far can produce pictures that lack definition.

Choose the fix that matches the reason you stopped down

You needed more depth of field

Move the focus point, use a slightly wider focal length, step back, or use focus stacking for a stationary scene. Several frames focused at different distances can preserve detail without forcing every frame to f/22.

You needed a slower shutter speed

Use an ND filter instead of closing the aperture beyond the point where detail begins to fall. This is useful for waterfalls, traffic trails, and video in bright light.

You needed a starburst

A small aperture can be worth the tradeoff when a defined sunstar is the point of the frame. Diffraction creates that effect around a bright point source. Decide whether the starburst matters more than maximum fine detail.

You were trying to make everything sharp

Depth of field is a range of acceptable sharpness, not a switch that makes every distance equally detailed. Use the depth-of-field calculator to see how focus distance, focal length, aperture, and sensor format interact before defaulting to the smallest opening.

There is no universal diffraction cutoff

Do not treat f/11 or f/16 as a permanent forbidden line. Sensor resolution, output size, viewing distance, lens behavior, and the depth the scene needs all matter. The useful answer comes from a controlled comparison on your camera and the final output.

For many lenses, a middle aperture is a strong balance of center detail, corner detail, and depth. Nikon's focus-stacking guidance uses f/2.8 to f/8 as an example range for preserving definition, but that is a starting point, not a promise for every lens.

Primary sources

• Nikon: Focus Shift, the Basics
• Sony: Aperture Priority and diffraction guidance
• Canon: Lens technology and diffraction

Is f/16 always too soft?

No. It may be the right tradeoff when depth of field or a starburst matters more than maximum fine detail. Compare it with f/8 and f/11 at the final output size instead of rejecting it by rule.

Why is my photo in focus but still not crisp?

If every distance is slightly soft and the frame was made at a very small aperture, diffraction is a strong possibility. Also rule out motion, aggressive noise reduction, missed focus, and a low-resolution export.

Should I use focus stacking instead of f/22?

For a stationary subject and a camera that will not move, focus stacking can preserve more detail while extending depth. It is a poor fit for moving leaves, water, people, or any scene that changes between frames.
